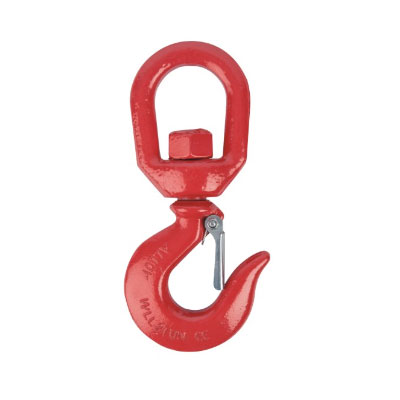

Swivel Hooks Avèk Kalite LatchUS
Materyèl: 45 # （G43ï¼ ‰ ，40CR（G70ï¼ ‰
Ultim chaj = WLL * 3（G43ï¼ ‰, WLL * 4（G70ï¼ ‰
Tretman andigman: pwòp tèt ou-zenk plise, plonje cho galvanised
Swivel Kwòk Avèk LatchEntwodiksyon
US Kalite
Materyèl: 45 # （G43ï¼ ‰ ，40CR（G70ï¼ ‰
Ultim chaj = WLL * 3（G43ï¼ ‰, WLL * 4（G70ï¼ ‰
Tretman andigman: pwòp tèt ou-zenk plise, plonje cho galvanised
Swivel Kwòk Avèk Latch Espesifikasyon
| Atik No. | Travay chaj (LBS) | Dimansyon ¼ˆinï ¼ | Pwa (KGS) | |||||
| 322A | B | R | O | T | ||||
| 90010000 | 1 | 0.94 | 1.25 | 0.88 | 4.47 | 0.35 | ||
| 90010001 | 1 1/2 | 1.31 | 1.5 | 0.97 | 5.28 | 0.58 | ||
| 90010002 | 2 | 1.63 | 1.75 | 1 | 6.02 | 1.03 | ||
| 90010003 | 3 | 1.56 | 1.75 | 1.13 | 6.38 | 1.18 | ||
| 90010004 | 4 1/2 | 1.75 | 2 | 1.34 | 7.41 | 2.18 | ||
| 90010005 | 7 | 2.31 | 2.5 | 1.69 | 9.59 | 4.72 | ||
| 90010006 | 11 | 2.38 | 2.75 | 2.06 | 11.13 | 7.45 | ||
| 90010007 | 15 | 2.81 | 3.13 | 2.25 | 11.94 | 10.61 | ||
