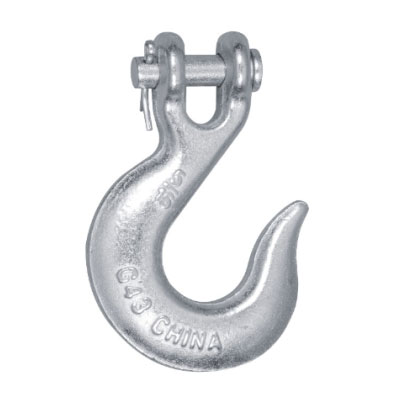

Fòje Clevis glise HookUS Kalite
Materyèl: 45 # （G43ï¼ ‰ ，40CR（G70ï¼ ‰
Ultim chaj = WLL * 3（G43ï¼ ‰, WLL * 4（G70ï¼ ‰
Tretman andigman: pwòp tèt ou-zenk plise, plonje cho galvanised
Fòje Clevis glise HookEntwodiksyon
US Kalite
Materyèl: 45 # （G43ï¼ ‰ ，40CR（G70ï¼ ‰
Ultim chaj = WLL * 3（G43ï¼ ‰, WLL * 4（G70ï¼ ‰
Tretman andigman: pwòp tèt ou-zenk plise, plonje cho galvanised
Fòje Clevis glise Hook Espesifikasyon
| Atik No. | Gwosè chèn (an) | Travay chaj (LBS) | Dimansyon ¼ˆinï ¼ | Pwa (KGS) | ||||
| H-331 | A-331 | B | E | P | R | |||
| 90010000 | 1/4 | 1950 | 2750 | 0.44 | 0.94 | 0.38 | 2.56 | 0.27 |
| 90010001 | 5/16 | 2875 | 4300 | 0.5 | 1.66 | 0.44 | 2.87 | 0.38 |
| 90010002 | 3/8 | 4000 | 5250 | 0.59 | 1.31 | 0.47 | 3.25 | 0.63 |
| 90010003 | 1/2 | 6500 | 9000 | 0.75 | 1.69 | 0.63 | 4 | 1.32 |
