Kwòk je ak Kalite LatchUS
Materyèl: 45 # （G43ï¼ ‰ ，40CR（G70ï¼ ‰
Ultim chaj = WLL * 3（G43ï¼ ‰, WLL * 4（G70ï¼ ‰
Tretman andigman: pwòp tèt ou-zenk plise, plonje cho galvanised

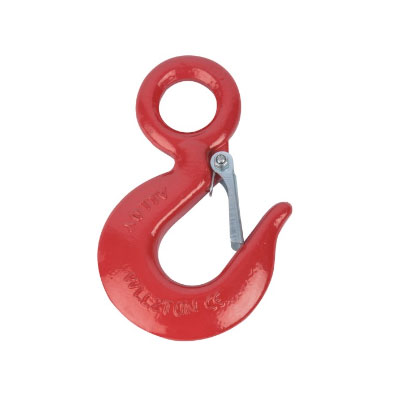

Zye Kwòk ak LatchEntwodiksyon
US Kalite
Materyèl: 45 # （G43ï¼ ‰ ，40CR（G70ï¼ ‰
Ultim chaj = WLL * 3（G43ï¼ ‰, WLL * 4（G70ï¼ ‰
Tretman andigman: pwòp tèt ou-zenk plise, plonje cho galvanised
Zye Kwòk ak Latch Espesifikasyon
| Atik No. | Travay chaj (LBS) | Dimansyon ¼ˆinï ¼ | Pwa (KGS) | |||||
| 322A | B | R | O | T | ||||
| 90010000 | 3/4 | 0.63 | 2.8 | 0 | 0.65 | 0.17 | ||
| 90010001 | 1 | 0.75 | 3.22 | 0.88 | 0.81 | 0.26 | ||
| 90010002 | 1 1/2 | 0.91 | 3.66 | 0.97 | 0.81 | 0.35 | ||
| 90010003 | 2 | 1.12 | 4.09 | 1 | 0.84 | 0.58 | ||
| 90010004 | 3 | 1.25 | 4.69 | 1.12 | 1.19 | 0.79 | ||
| 90010005 | 4 1/2 | 1.56 | 5.78 | 1.34 | 1.38 | 1.66 | ||
| 90010006 | 7 | 2 | 7.38 | 1.69 | 1.78 | 3.26 | ||
| 90010007 | 11 | 2.44 | 9.06 | 2.06 | 2.12 | 5.97 | ||
| 90010008 | 15 | 2.83 | 10.09 | 2.22 | 2.72 | 10.05 | ||
